- Make sure you have finished all the installations/cable connections before mapping.
- Enter your Roborock app and make sure the device is paired and connected.
- Enter the detailed page of the mower.

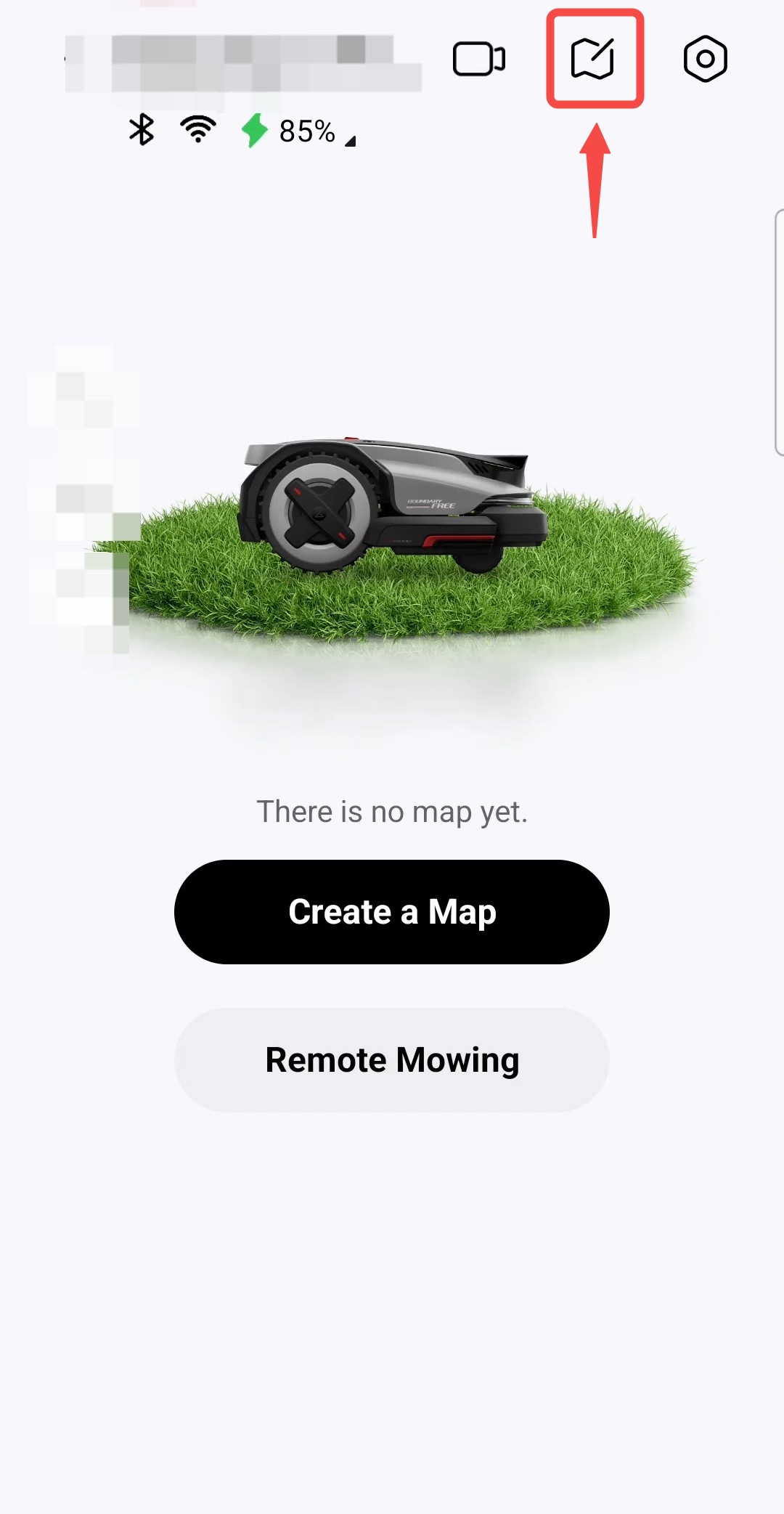

- Tap ‘Create a Map’

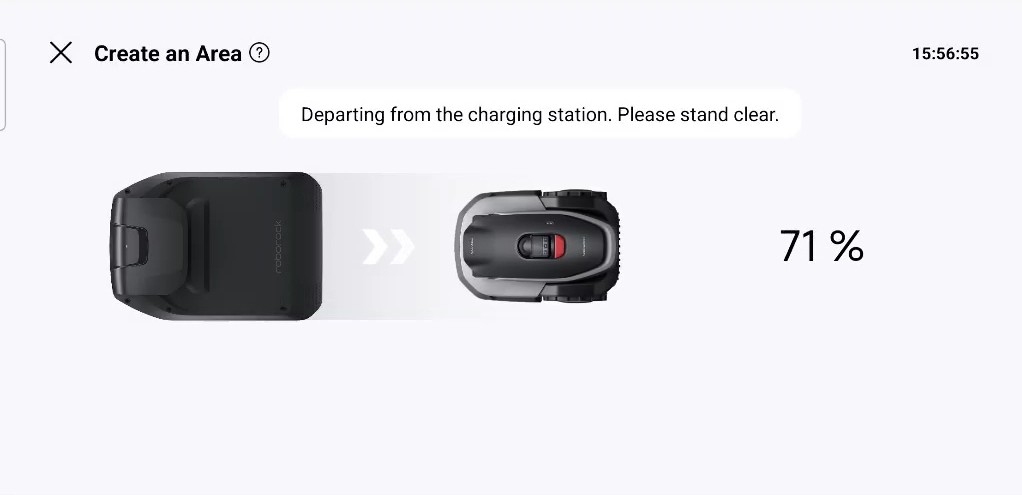

- The mower will start undocking from the charging station automatically, move backwards for about 1 metre, and stop there.

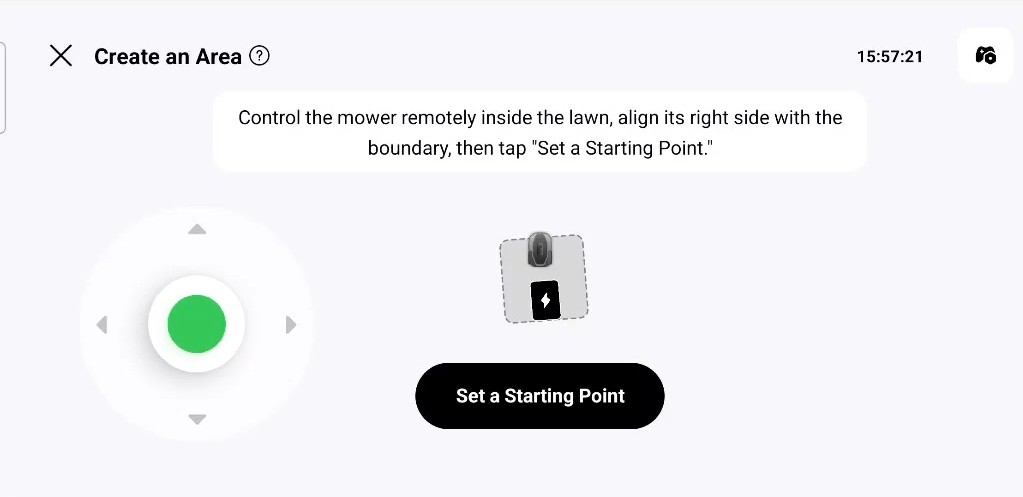

6. Use the joystick, manually controls the mower, and drives the mower to the edge of the mapping area, then tap 'Set a starting point' button.

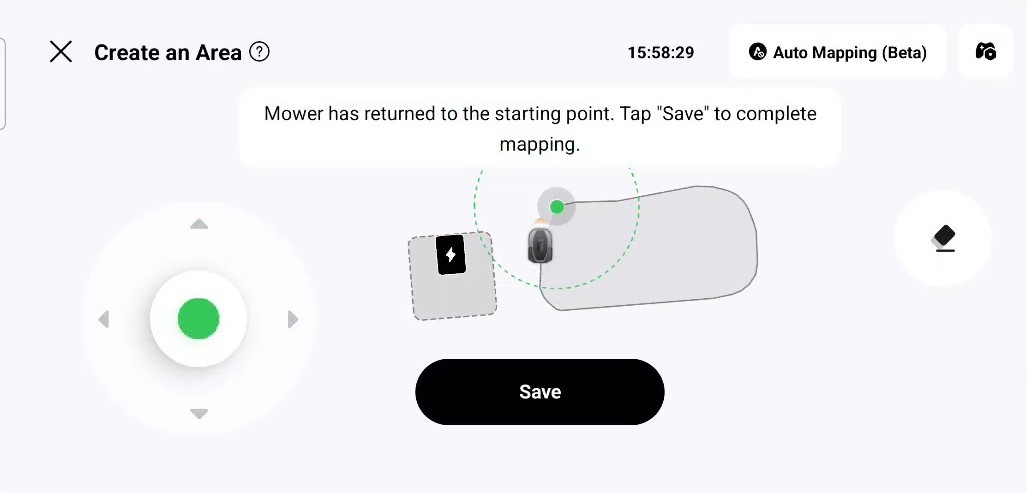

- Manually control the mower, move along the boundary of the mapping area, draw a circle and form a closed area, when the start and end points overlap with each other, a 'Save' button will appear, click the button and save the mapping data.
